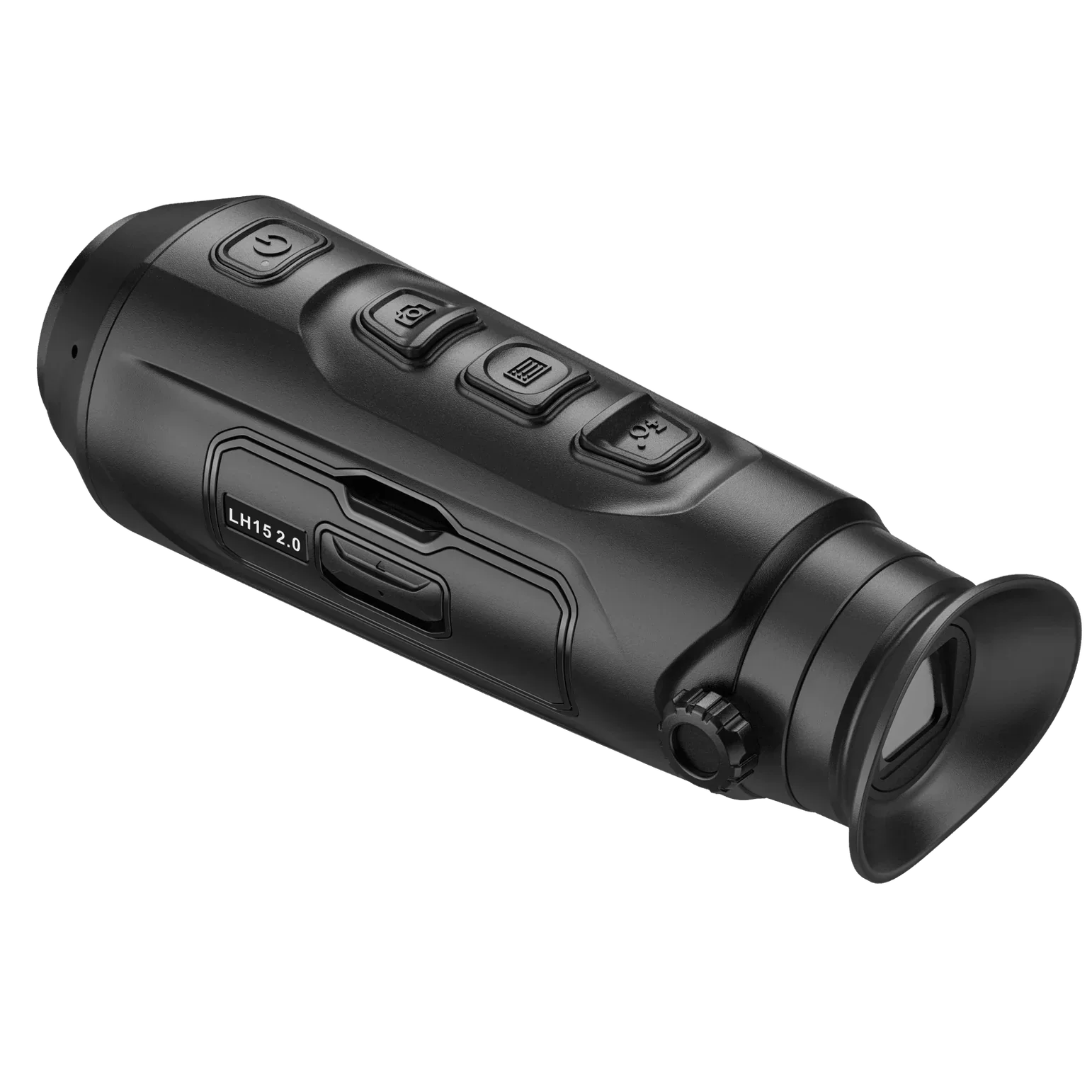

HIKMICRO LYNX LH15 2.0
Advanced VOx 12µm Imaging Sensor
The powerful VOx 12µm imaging sensor with an industry leading <20mK NETD to ensure the perfect distinction of the target and present clear and detailed pictures even in complete darkness.
Easily Replaceable Battery
Powered by an easily replaceable 18650 battery
Newly Designed Ergonomic Housing
With high grip rubber overmoulding, a comfortable feeling in the palm and all the unit's buttons within reach the Lynx 2.0 is ideal for one handed use in the field in all environments.
| SPECIFICATIONS | LH15 2.0 |
| Sensor | 384x288 12µm |
| Objective Lens (Focal Length) | 15 mm |
| Detection Distance | 750 m |
| SENSOR | |
| Resolution, pixels | 384x288 |
| Pixel pitch, µm | 12µm |
| Frame rate, Hz | 50 Hz |
| NETD | <20mK |
| LENS SPECIFICATIONS | |
| Objective lens | F1.0 |
| Magnification (Optical) |
1.4 |
| Magnification (Digital) | 1x, 2x, 4x, 8x (11.2x) |
| Field of view | 17.5° x 13.1° |
| Display | |
| Type | 10mm, OLED |
| Resolution, Pixels | 1024 x 768 |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion |
| VIDEO | |
| Storage | 16 GB |
| Image Capture | Yes |
| Video Record | Yes |
| Standby Mode | Yes |
| PIP | Yes |
| ADDITIONAL FEATURES | |
| Hot Tracking | Yes |
| Wi-Fi hot spot | Yes |
| HIKMICRO Sight App Support | Yes |
| ENVIRONMENTAL | |
| Rated Protection | IP67 |
| Operating temperature range | -30 °C to 55 °C |
| WEIGHT & SIZE | |
| Dimensions, mm | 164mm x 56mm x 60.8mm |
| Weight | 272g (without battery) |
| POWER SUPPLY | |
| Battery type | Removable 18650 battery |
| Operating time on battery (WiFi & Hot tracking disabled) |
6.5 Hours |
| Charging interface | External charger (Supplied) |
| Warranty Period Main Unit |
3 Years, 10 Years for Sensor |
